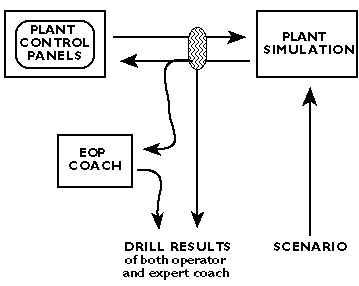

Figure 5:
Structural schematic of EOP-SS during operator drill.
While the plant is taken through emergency scenarios, both operator actions
and expert "EOP Coach" proposed actions are stored. Operator actions
also control plant conditions and modify the outcome of the scenario.
|
